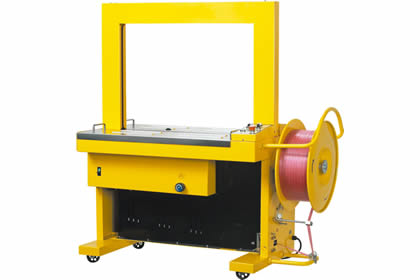

SP-201A全自動打包機
| Specification | |
| Model | YS-X201 |
| Power Source | 220V /50/60HZ/ 1Phase |
| Packing Speed | 2.5 second/path |
| Tension Force | 0-50kg(adjustable) |
| Hot-adhering Position | Bottom |
| Table Height | 750mm |
| Arch |
|
| Applicable Strap | width(9,10,11,12,13,15)mm Thickness(0.55-1.0)mm （to be specified） |
| Applicable Strap Spool | Inner Dia.:210mm |
| Packing Type |
Parallel Strapping manual operation, foot switch, ball switch |
| Electrical Configuration |
PC board control Button Switch: French “TE” Middle Relay: French “Schneider” Motor: Chinese “MEIWA” DC motor with brush Sensor Switch and Proximity Switch :German “P+F” |
| Machine Dimensions | L x W620 x H mm |
| Packing Measurement | L 1500 x W 650 x H1640mm |
| Weight | N.W: 180kg G.W: 250kg |
| Noise | ≤75DB |
| Environment Condition | Humidity≤98%, temperature 0-40℃ |
| Bottom Adhesion | surface≥90%,width≥20%, deviation of position≤2mm |
